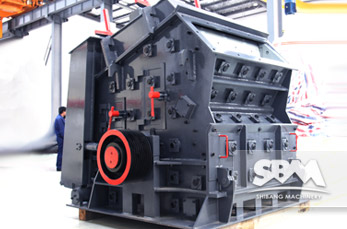

PF Series Impact Crusher

This series of products use the impact energy to crush materials. The rotor has high speed of rotation under the driving of the motor. The materials that enter into crusher cavity impact the plate hammer. On the rotor, under the high-speed impact of the board hammer, materials are broken. The crushed material is counter to the liner to be broken again; and the final products are discharged from the discharge port.

We're here to help:

Easy ways to get the answers you need.

0086-21-58386189, 58386176
0086-21-58386211

    Impact Crusher Advantages

  • Efficient energy-saving and wear compression:

    The machine has high crushing ratio, high crushing efficiency and the rotor has a moment of inertia, energy consumption is low; with high chromium plate hammer, it has impact resistance,abrasion resistance, effectively extending the service life of the wearing parts.

  • Simple structure and convenient repair:

    The machine has a simple structure, which is mainly composed of a casing, a rotor and counterattack plate. The jacking device can quickly hit the rear frame to do the machine parts replacement repair operation. Rotor and the main shaft adopt expansion sleeve keyless connection. Maintenance is convenient, economic and reliable.

  • Adjustable particle size and ideal products:

    The machine is equipped with a top regulator outlet device, which can be simple and quick to adjust the counterattack plate and plate hammer clearance and control discharge size. The final products are in cube shape with no tension cracks and grain shape good, which is in line with various aggregate grading standards.

Model Rotor Φ×L (mm) Feed Opening (mm) Max Feeding (mm) Capacity (t/h) Power (kw) Motor Model Machine Size (mm)
PF1010 Φ1000×1050 400×1080 350 50-80 4-75 Y280S-4/75 2455×2086×2800
PF1210 Φ1250×1050 400×1080 350 60-120 6-110 Y315L1-6/110 2590×2050×2810
PF1214 Φ1250×1400 400×1430 350 80-160 6-132 Y315L2-6/132 2590×2400×2810
PF1315 Φ1300×1500 860×1520 350 120-260 6-200 Y355M3-6/200 2930×2760×3050

feedstock size: 250-500mm

Throughout: 50-220T/h

Fields Of Application: Metallurgy, mine, cement, chemical, refractories, ceramics and other industrial sectors, as well as the highway construction, water conservancy, building stone, sand processing and other fields.

suitable materials: It is suitable for all kinds of soft, hard ore crushing and fine crushing work, such as: limestone, calcite, feldspar, talc, barite, fluorite, rare earth, kaolin, coke, coal, gypsum etc.

Impact Crusher Working Principle

This series of products use the impact energy to crush materials. The rotor has high speed of rotation under the driving of the motor. The materials that enter into crusher cavity impact the plate hammer. On the rotor, under the high-speed impact of the board hammer, materials are broken. The crushed material is counter to the liner to be broken again; and the final products are discharged from the discharge port. Adjusting the clearance between the back frame and the rotor frame can achieve the purpose of changing the particle size and shape of the materials.

Services

Supply the most current design and technical expertise;Supply parts sales and training service far beyond the initial sale;Your profits with quality parts and expert service.
