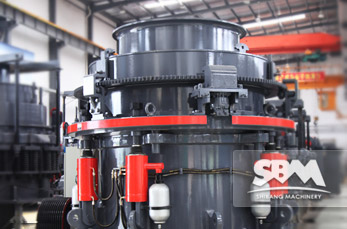

HPC Cone Crusher

HPC series multi cylinder hydraulic cone crusher breaks through the design concept of traditional cone crusher and adopts advanced fixed spindle and the eccentric sleeve structure rotating around the spindle. And the laminating crushing principle significantly improves the crushing capacity and the quality of products. The design of Hydraulic and lubrication systems not only can ensure the reliable operation of equipment, but also greatly reduces the time and manpower.

We're here to help:

Easy ways to get the answers you need.

0086-21-58386189, 58386176
0086-21-58386211

    Cone Crusher Advantages

  • Structure optimization and high efficiency:

    The unique fixed spindle, the eccentric sleeve structure rotating around the main shaft and transmission parts and internal structure design optimization can ensure that equipment has strong bearing capacity. also it is equipped with large installed power and has the merits of small volume, high efficiency and low noise.

  • Full hydraulic adjustment and convenient and reliable:

    Full hydraulic control system is applied into all links from the insurance clear cavity to adjusting and locking. And it makes work stable and reliable,convenient operation, reduce downtime and also can realize the full automatic operation.

  • Lubrication and hydraulic integration and equipment automation:

    Equipped with hydraulic lubrication system integrated and automated intelligent centralized control system, the machine saves hydraulic lubrication costs. At the same time, it can monitor the running state of the equipment at full time to guarantee the safe and stable operation of equipment and save manpower.

  • Laminating crushing ideal production:

    It uses laminated crushing principle to crush material. The optimization of the equipment and the cavity improves the crushing efficiency, high crushing efficiency and low abrasion wearing parts so that it can improve product quality, reduce the equipment and the production cost.

  • Multiple uses of the machine and chamber type flexible conversion:

    The configuration of the medium and fine crushing cavity can realize the conversion in the cavity between the medium and fine crushing technology only need to replace the corresponding cavity plate and a few parts to meet the customers' demand and achieve a multi-purpose machine.

Model Movable Cone Diameter (mm) Chamber Style Min. Discharging (mm) Max. Feeding (mm) Capacity (t/h) Power (kw) Machine Size (mm)
HPC220 1220 Coarse 19 210 185-300 220 2726×1950×2182
Fine 13 105 150-210
HPC400 1570 Coarse 30 290 400-500 400 3447×2830×2977
Fine 16 135 260-400

feedstock size:10-240mm

throughout:100-600t/h

fields of application: Building stone crushing, solid waste disposal

suitable material: River gravel, limestone, dolomite, granite, rhyolite, dolerite, basalt; metal ore crushing: ferrous metal ore, non-ferrous metal ore, construction waste, coal gangue, tailings

SBM HPC series multi cylinder hydraulic cone crusher is a new generation of cone crusher on the basis of more than 20 years' experience in R & D of the crusher and the combination with foreign advanced technology.

Cone Crusher Working Principle

When HPC hydraulic cone crusher machine is at work, the motor through the belt, transmission shaft, bevel gear pair drives the eccentric sleeve to rotate and the moving cone does the rotating swing motion under the action of the eccentric sleeve to make moving cone and fixed cone sometimes be closer or deviation. The materials are being squeezed, impact, crushing in the crushing cavity and finally are discharged from the lower.

Services

Supply the most current design and technical expertise;Supply parts sales and training service far beyond the initial sale;Your profits with quality parts and expert service.
