Vehicle traction, compact structure, stable and firm, ensure that the crushing station is able to meet the mobility needs whether on the job site or road; various models can fast horse combination with other models to meet the different needs of production and operation.
Combination of each type operation can realize the material on-site crushing. Crushing and sieving material products can meet customer requirements, and it also can avoid the material transport intermediate links from the worksite to break again, which greatly reduces the material cost of transportation.
The crushing station can be equipped with independent power generation units, if not the local power grid, the machine can still work normally; at the same time I can according to the customer's site, materials, grain type requirements on mobile crushing station special custom.
Station adopts our excellent performance of crusher, vibrating screen and feeder mobile crushing, stable and reliable quality; mobile crushing station manufacturing experience for many years our company based on the crushing station, mature technology, simple operation, convenient repair.
| Model | Car Body | Feeder | Crusher | Belt Conveyor (standard configuration? ) | Engine (Optional) | Overall dimension (mm) | ||||
| Model | Feeding Size (mm) | Power (kw) | Model | Feeding Size (mm) | Power (kw) | Size(m) | Power(kw) | |||

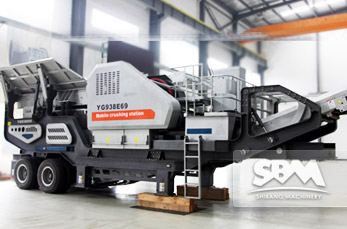

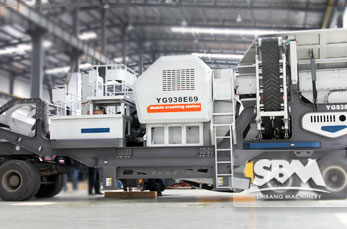

| YG938E69 | Two-Spindle | ZSW380×96 | 500 | 6-11 | PE600×900 | 500 | 6-75 | B800×8.5 | 200 | 12600×2550×3870 |
| YG1142E710 | Three-Spindle | ZSW420×110 | 580 | 6-11 | PE750×1060 | 630 | 8-90 | B1000×9.5 | 250 | 13900×2750×4320 |
| YG1349E912 | Three-Spindle | ZSW490×130 | 750 | 6-22 | PE900×1200 | 750 | 8-130 | B1200×10.5 | 270 | 15450×2950×4380 |
| YG1349EW86 | Three-Spindle | ZSW490×130 | 750 | 6-22 | PEW860 | 720 | 6-132 | B1200×10.5 | 320 | 15450×2950×4380 |
| YG1349EW110 | Three-Spindle | ZSW490×130 | 750 | 6-22 | PEW1100 | 930 | 8-185 | B1200×10.5 | 400 | 15450×2950×4380 |
Feedstock Size: 1 — 750mm
throughout:90 — 450t/h
Fields Of Application:This machine is widely used in mine ore crushing, recycling of construction waste, construction aggregate, highway, railway, bridge and the production of construction industry.
Suitable Materials: It is widely used in all kinds of hardness of rock materials and ore crushing, such as granite, diabase, basalt, shale, sandstone, quartz stone, gravel, limestone, iron ore, copper ore, manganese ore, coal, nonferrous metal ore, stone etc.
The main station and crushing equipment for crushing tyre mobile (optional jaw crusher, impact crusher, cone crusher, impact crusher machine), material feeder uniform delivery to the crusher preliminary broken, was later by the circular vibrating screen form a closed system, realize the circulation of the material crushing, meet size requirements of material from the conveyor output, so as to achieve the purpose of production. The mobile crushing station can be based on actual production the need to remove the circular vibrating screen, and directly to the material preliminary broken, and then with other crushing equipment for specific operation, convenient, flexible.
Supply the most current design and technical expertise;Supply parts sales and training service far beyond the initial sale;Your profits with quality parts and expert service.
