It adopts our excellent performance of crusher, vibrating screen and feeder mobile crushing, which is stable and reliable quality. Control system adopts imported servo pilot operating system, convenient operation, accurate control, and it can realize stepless speed.
Chassis adopts rigid hull structure, high strength, ground down, through the good, has a good adaptability to the mountain, wetland; engine can add protection low temperature preheating starting device, the device can be easily started in low temperature -25C ° in environment.
According to different needs, the series mobile crusher not only can be a single group of independent operation, also it can be combined into coarse crushing, fine crushing and screening system and two stage crushing, crushing, fine crushing and screening system three sections, or into other system according to the scene.
Equipped with Cummins diesel engine with excellent performance of the crusher station, low fuel consumption, low noise, excellent performance, ensure reliable, economic, environmentally friendly power source; at the same time, the technology is mature and high torque hydraulic motor, large driving force, high reliability, strong maneuverability.

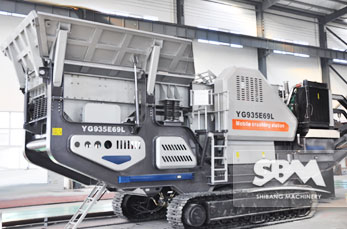

| Model Parameter | YG935E69 | YG1138E71L | YG1138EW86L | YG1138FW1315ⅡL |
| Feeder Model | GZD960×3500 | GZD1100×3800 | GZD1100×3800 | GZD1100×3800 |
| crusher Model | PE600X900 | PE750X1060 | PEW860 | PFW-1315II |
| B800X8.5M | B1000X9M | B1000X9M | B1000X9M | |
| Side of the belt conveyor Model | B450X3M | B500X3.5M | B500X3.5M | B500X3.5M |
| Power（kw） | 180 | 250 | 200 | 300 |
| TransportationDimension（mm） (L×W×H) | 11900×3100×3650 | 11900×3100×3650 | 13300×3100×4500 | 13300×3100×4500 |
| Jobs Dimension（mm） (L×W×H) | 12100×3100×4100 | 12100×3100×4100 | 13500×3100×5100 | 13500×3100×4800 |
Feedstock Size:1 — 750mm
Throughout:90 — 450t/h
Fields Of Application: This machine is widely used in mine ore crushing, recycling of construction waste, construction aggregate, highway, railway, bridge and the production of construction industry.
Suitable Materials:It is widely used in all kinds of hardness of rock materials and ore crushing, such as granite, diabase, basalt, shale, sandstone, quartz stone, gravel, limestone, iron ore, copper ore, manganese ore, coal, nonferrous metal ore, stone etc.
Shanghai Shibang Machinery Co., Ltd. design and production of the tracked mobile crushing station can be according to the material type and the coarse crushing, fine crushing and screening system selection, can be a single group of Raiders independent operation, also can form a system configuration unit joint operation. The mobile crushing station for the integration of group work, the site can be the first line of the broken material, from the material from the scene and then crushing, processing of intermediate links, greatly reducing the material transport costs. Mobile crushing station flexible configuration, can according to the actual design or special mobile crusher station, very suitable for construction waste crushing. The mobile crushing station using fully possess the characteristics of environmental protection and energy saving, production process to reduce noise, reduce dust and other pollution factors have been solved properly. Station processing capacity is broken, the maximum to meet construction waste treatment demand. The mobile crushing station used in construction waste crushing processing applications more widely, the comprehensive utilization of construction waste in the project has been put into use, investment prospects.
Supply the most current design and technical expertise;Supply parts sales and training service far beyond the initial sale;Your profits with quality parts and expert service.
