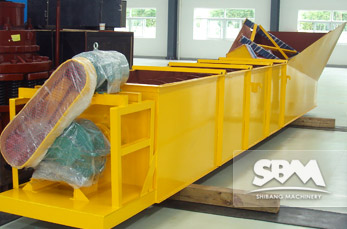

LSX Sand Washing Machine

LSX series screw sand washing machine is efficient sand washing equipment, which adopts advanced technology at home and abroad and the actual conditions of sand industry development.

We're here to help:

Easy ways to get the answers you need.

0086-21-58386189, 58386176
0086-21-58386211

    Sand Washing Machine Advantages

  • Large capacity and low cost:

    Single output up to 180 tons / hour, basically meet the sand washing the needs of our customers; the machine has the advantages of less investment, low power, low power consumption, effectively save the cost of production.

  • The ple effects of high cleanliness:

    This equipment has cleaning, dewatering, grade three functions; when working, the impeller drive, sand grinding each other, remove the gravel covered surface impurities, and destruction of water vapor coated layer of sand, and in strong currents to complete cleaning function.

  • Simple structure low failure rate:

    The sand washing machine has the advantages of simple structure, reasonable structure, impeller transmission bearing device with water and water material isolation, novel sealing structure, fully enclosed oil bath type transmission device, thus avoiding bearings for soaking, sand and pollutants caused damage of the phenomenon.

  • Long service life and no pollution:

    The excellent design of the sealing structure makes the machine durable and no repair for a long time; low water consumption, low noise, in line with national environmental standards.

Model Screw Diameter (mm) Tank Length (mm) Screw Quantity Max Feeding (mm) Capacity (t/h) REV (r/min) Power (kw) Motor Model Water Consumption (t/h) Machine Size (mm)
LSX920 920 7585 1 ≤10 100 21 6-11 Y160L-6/11 10-80 8420×2180×3960
2LSX920 920 7580 2 ≤10 200 21 6-11×2 Y160L-6/11 20-160 8420×3970×3960
LSX1120 1120 9750 1 ≤10 175 17 6-18.5 Y200L1-6/18.5 20-150 10770×3950×4860
2LSX1120 1120 9750 2 ≤10 350 17 6-18.5×2 Y200L1-6/18.5 40-300 10770×5260×4860

Feedstock Size:10mm

Throughout: 20 — 180t/h

Fields Of Application:It is applied to the metallurgical, building materials, water and electricity industries such as washing, grading, cleaning and washing operation, which is suitable for fine-grained and coarse-grained materials, the building sand, sand road of appropriate.

Suitable Materials: It is applied to the metallurgical, building materials, water and electricity industries such as washing, grading, and impurity removal operations.

Sand Washing Machine Working Principle

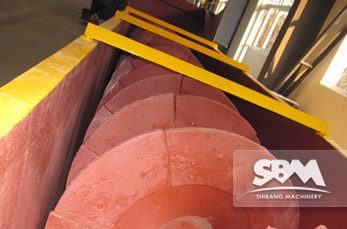

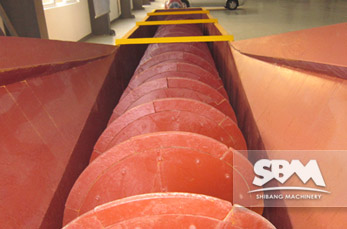

When it is at working, the motor through the belt, reducer, gear reducer drives the impeller to rotate slowly, the sand with the feed chute into the washing groove, rolling in the impeller drive, and mutual grinding, remove the gravel covered surface impurities, and destruction of water vapor coated layer of sand, in order to facilitate dehydration; at the same time, add water, the formation of a strong current, timely foreign impurities and the proportion of small away, and from the overflow outlet washing tank discharge, complete cleaning effect. Clean gravel from the leaves away, finally into sand trough from the rotation of the impeller, complete sand cleaning effect.

Services

Supply the most current design and technical expertise;Supply parts sales and training service far beyond the initial sale;Your profits with quality parts and expert service.
