Vibrating Screen

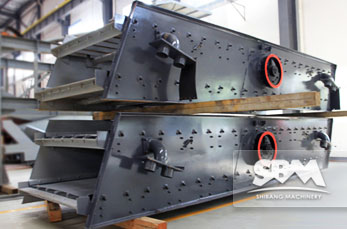

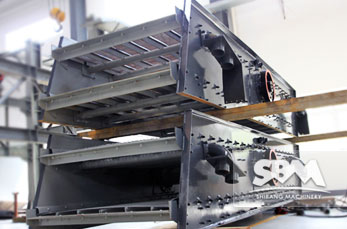

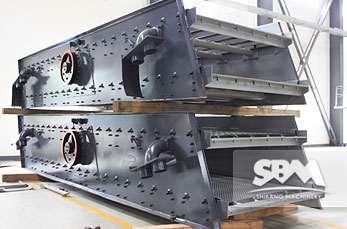

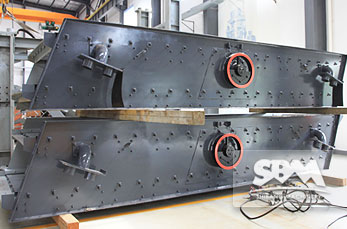

Vibrating screen uses the N series of eccentric vibration exciter, intermediate transmission connected by flexible connection, equipment amplitude is larger, and vibration was stable. The ability of the vibration sieve and screening efficiency are improved, which can ensure the operation of the vibrating screen is more reliable and service life is longer.

We're here to help:

Easy ways to get the answers you need.

0086-21-58386189, 58386176

    Vibrating Screen Advantages

  • Strong exciting force and easy to adjust:

    Exciter adopts external eccentric block structure, light weight, strong exciting force. By adjusting the eccentric block number, it can adjust the amplitude and the exciting force of vibration sieve.

  • Easy installation and maintenance:

    Vibration exciter is directly fixed on the sieve box side. the two vibration exciters are connected through a universal couplings, which is convenient installation and maintenance.

  • High strength sieve box:

    The sieve box side using the overall bending parts, side plates between the beam and the transverse strut with the ring groove rivet connection, the whole stress is uniform, high strength.

  • Smooth operation of equipment:

    The motor is connected with intermediate shaft through the triangle, and the intermediate shaft is connected with the vibrator through the flexible coupling. The whole equipment torque transmission has no axial force, so as to make the equipment more stable.

  • The overall stress more reasonable:

    Vibration exciter is directly fixed on the sieve box side and produces the vibration force through the plate center, and uses the finite element analysis technology to optimize the calculation of screen box, so that the screen box side plate and the stress condition are more reasonable.

Model Screen Size (mm) Layers Mesh Size (mm) Feeding Size (mm) Capacity (t/h) Power (kw) Motor Model REV (r/min) Amplitude (mm) Angle (℃) Machine Size (mm)
2YA1237 1200×3700 2 3-50 ≤200 7.5-80 4-15 Y160L-4/15 970 8 20 4010×2250×2660
3YA1237 1200×3700 3 3-50 ≤200 7.5-80 4-15 Y160L-4/15 970 8 20 4010×2250×3140
2YA1548 1500×4800 2 5-50 ≤400 50-208 4-15 Y160L-4/15 970 8 20 5120×2590×3060
3YA1548 1500×4800 3 5-50 ≤400 50-250 4-15 Y160L-4/15 970 8 20 5120×2590×3540
2YA1848 1800×4800 2 5-80 ≤400 50-260 4-18.5 Y180M-4/18.5 970 8 20 5120×2950×3060
3YA1848 1800×4800 3 5-80 ≤400 50-300 4-18.5 Y180M-4/18.5 970 8 20 5120×2950×3540
2YA1860 1800×6000 2 5-80 ≤400 50-300 4-18.5 Y180M-4/18.5 970 8 20 6260×2950×3480
3YA1860 1800×6000 3 5-80 ≤400 50-350 4-22 Y180L-4/22 970 8 20 6260×2990×3960
2YA2160 2100×6000 2 5-150 ≤400 100-500 4-22 Y180L-4/22 730 6-8 20 6270×3410×3670
3YA2160 2100×6000 3 5-100 ≤400 100-500 4-30 Y200L-4/30 730 6-8 20 6270×3470×4100
2YA2460 2400×6000 2 5-150 ≤400 150-700 4-37 Y225S-4/37 730 6-8 20 6270×3770×3610
3YA2460 2400×6000 3 5-150 ≤400 150-700 4-37 Y225S-4/37 730 6-8 20 6270×3790×4100

Feedstock Size: <400mm

Throughout: 100-850t/h

Fields Of Application: It is applied into metal mining, construction, coal, cement and solid waste treatment fields and so on.

Suitable Materials:It is suitable for ferrous metal ore, non-ferrous metal ore, limestone, pebble, dolomite, granite, rhyolite, basalt; coal, coke, building waste, coal gangue, and tailings.

Vibrating Screen Working Principle

This series of vibrating screen with eccentric block as the excitation source to drive the sieve box for circular vibrating, its working principle is: the screen box through the elastic support on the base (or base), the eccentric block is mounted on the spindle, the spindle through the bearing and the bearing seat is arranged on the side of the screen box. Motor driven by triangle with intermediate shaft, intermediate shaft drives the rotation of the spindle, spindle rotates to drive an eccentric block to rotate, inertia force of the eccentric block to produce forced vibration sieve box. With the motor running, the approximate circular locus motion vibrating screen, realize continuous screening operation.
