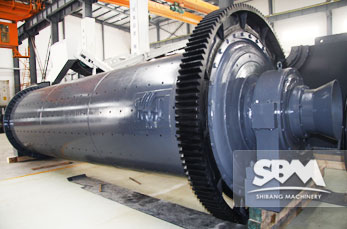

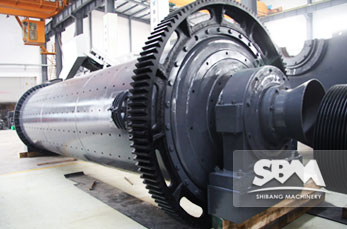

Ball Mill

The ball mill is one kind of new high efficient grinding machine. This mill is mainly used for coarse powder and small size of sand producing. The ball mill is widely used in metallurgy, mining, chemical, cement, construction, industrial and mining industries etc.

We're here to help:

Easy ways to get the answers you need.

0086-21-58386189, 58386176
0086-21-58386211

    Ball mill advantages

    1. Milling efficiency
    2. Mechanically simple design
    3. Competitive capital cost
    4. Use of low cost, ceramic, natural silica sand or pebble media
    5. No steel contamination of product
    6. Capacity to operate continuously at full load power draw
    7. Low rotational impeller speed with shallow charge depth providing reduced abrasion of impeller and body liner coverings

    Ball Mill Product Benefits

    1. High production capacity and high crushing ratio.
    2. Low power consumption, uniform particle size.
    3. Simple structure, easy to operate.
    4. Low investment cost, easy management.

  • To reduce the resistance, no accumulation of materials the use of curved duct and tangential air flow into the sliding reduce the resistance. The export orientation to the dispersion of the material inside is not easy to jam. Compact the design of tapered gear driving the spindle overall transmission and integration structure makes the machine more compact structure, which make installation and adjustment faster and more convenient.

Model Rotate Speed (r/min) Grinding Media Weight (T) Grinding Media Weight (T) Discharge Size (mm) Output(t/h) Motor Power (KW)
Ф900×1800 36～38 1.5 ≤20 0.075-0.89 0.65-2 18.5
Ф900×3000 36 2.7 ≤20 0.075-0.89 1.1-3.5 22
Ф1200×2400 36 3 ≤25 0.075-0.6 1.5-4.8 30
Ф1200×3000 36 3.5 ≤25 0.074-0.4 1.6-5 37
Ф1200×4500 32.4 5 ≤25 0.074-0.4 1.6-5.8 55
Ф1500×3000 29.7 7.5 ≤25 0.074-0.4 2-5 75
Ф1500×4500 27 11 ≤25 0.074-0.4 3-6 110
Ф1500×5700 28 12 ≤25 0.074-0.4 3.5-6 130
Ф1830×3000 25.4 11 ≤25 0.074-0.4 4-10 130
Ф1830×4500 25.4 15 ≤25 0.074-0.4 4.5-12 155
Ф1830×6400 24.1 21 ≤25 0.074-0.4 6.5-15 210
Ф1830×7000 24.1 23 ≤25 0.074-0.4 7.5-17 245
Ф2100×3000 23.7 15 ≤25 0.074-0.4 6.5-36 155
Ф2100×4500 23.7 24 ≤25 0.074-0.4 8-43 245
Ф2100×7000 23.7 26 ≤25 0.074-0.4 8-48 280
Ф2200×4500 21.5 27 ≤25 0.074-0.4 9-45 280
Ф2200×6500 21.7 35 ≤25 0.074-0.4 14-26 380
Ф2200×7000 21.7 35 ≤25 0.074-0.4 15-28 380
Ф2200×7500 21.7 35 ≤25 0.074-0.4 15-30 380
Ф2400×3000 21 23 ≤25 0.074-0.4 7-50 245
Ф2400×4500 21 30 ≤25 0.074-0.4 8.5-60 320
Ф2700×4000 20.7 40 ≤25 0.074-0.4 12-80 400
Ф2700×4500 20.7 48 ≤25 0.074-0.4 12-90 430
Ф3200×4500 18 65 ≤25 0.074-0.4 According to the process condition 800

The ball mill is key equipment in grinding industry, especially in mineral ore dressing plants. It is widely used for the cement, the silicate product, new type building material, fire-proof material, chemical fertilizer, black and non-ferrous metal, glass, ceramics and etc.

Ball Mill Working Principle

Closed system: The bulk materials are crushed to the desired size by jaw crusher. Then the materials will be sent to the storage hopper by the elevator. After vibrating feeder, materials will be even quantitatively and continuously into the indoor host grinding. After grinding, the powder is away by fan airflow, the powder selecting machine will grade the powder. Accord with the fineness of fly will be into the large cyclone collector with the gas flow through the pipe to be isolated and collected, and then the powder will be discharged from the powder tube discharge. The airflow returns air duct fan from large cyclone collector inhalation top.

Open system: In the grinding chamber internal grinding material with certain water content, the grinding heat generated in grinding chamber gas vaporizing expansion changes the gas flow rate, and the various machine pipe joint seal is not strict, let the outside gas is inhaled, the circulating air volume increase, therefore to achieve balance through adjustment of air exhaust fan and host the pipe, and the excess gas into the bag filter, the residual gas into the powder collected, the residual gas is discharged after purification.

Services

Supply the most current design and technical expertise;Supply parts sales and training service far beyond the initial sale;Your profits with quality parts and expert service.
