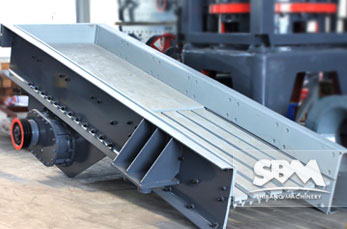

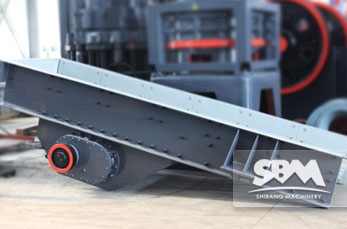

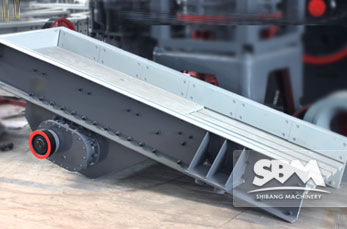

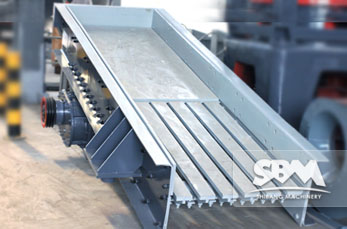

Vibrating Feeder

Vibrating feeder is also called vibration feeding machine. In the production process, the massive, granular and powdery materials are sent to the subject feeding device from the storage warehouse or funnel in uniform or quantitatively. In the crushing production line, the product can be used as crushing machinery to be continuous and uniform feeding, and also can do the initial screening for material.

We're here to help:

Easy ways to get the answers you need.

0086-21-58386189, 58386176
0086-21-58386211

    Vibrating Feeder Advantage

  • High efficiency and low operating cost:

    It adopts the double eccentric shaft as the excitation source and amplitude stability, which can ensure the liquidity of vibrating ore rock material and reduce channel blocking phenomenon of material, so it has high efficiency. It has the advantages of simple structure, no moving parts and less wearing parts. This series of vibration machine has less power consumption and energy saving.

  • High adaptability and less investment:

    It has high adaptability for all kinds of ore and rock, especially for cohesive ore rock material, and it can work in dusty or more water environment. It has the advantages of small volume, light weight, simple and compact structure, less investment and high performance price ratio.

  • Stable and reliable working performance:

    It has good continuity and the exciting force can be adjusted. Electric control uses half wave rectifying electrical appliances and can adjust feeding amount, and also can be used for automatic control in the production process, and realize of the production process automation.

  • Low noise and no pollution:

    The machine has low noise and closed frame structure can prevent dust pollution.

Model Trough Size(mm) Max Feeding (mm) Capacity (t/h) REV (r/min) Power (kw) Motor Model Machine Size(mm)
ZSW 180x80 1800×800 300 30-80 970 6-1.5×2 　 2200×1100×800
ZSW 200x120 2000×1200 300 80-500 970 6-2.2×2 　 2000×1200×855
ZSW 300X85 3000×900 300 40-100 970 6-2.2×2 　 3050×1430×1550
ZSW 380X96 3800×960 500 90-200 710 6-11 Y160L-6/11 3880×2240×1880
ZSW 420X110 4200×1100 580 150-350 710 6-15 Y180L-6/15 4300×2450×2010
ZSW 490X110 4900×1100 580 180-380 780 6-15 Y180L-6/15 4980×2450×2010
ZSW 490X130 4900×1300 750 250-450 780 6-22 Y200L2-6/22 4980×2710×2050
ZSW 600X150 6000×1500 800 600-1000 780 6-30 Y255M-6/30 6160×2919×2293

feedstock size:300-800mm

throughout:30-1000/h

Fields Of Application:It is widely used in metallurgy, mining, mineral processing, artificial sand, recycling of construction waste, building materials, chemical industry, abrasive and other industries crushing, screening equipment.

Suitable Materials: River gravel, granite, basalt, quartz, iron ore, limestone, etc.

Vibrating Feeder Working Principle

Vibrating feeder is composed of a feeding trough, vibrator, spring support and driving device. Vibration source of the body vibration feeder is vibrator. Vibrator is composed of two eccentric shaft (main, passive) and gear pair. The motor through the triangle belt drives shaft, and then the driving shaft gear driven shaft to rotate and the main, driven shaft reversely rotate at the same time to make the body vibration, so that material continuous flow and achieve the purpose of conveying material.
