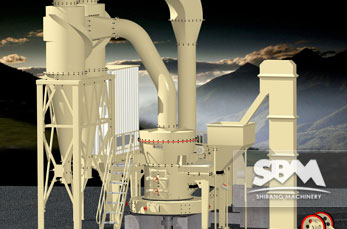

T130X Reinforced Ultrafine Mill

T130X strengthen ultrafine milling machine is the new type mill machine on the innovative design, which is on the basis of the original patent product of my company -- MTM overpressure ladder mill.This machine is excellent to meet the clients' demand on the 200-33 μ m (80-425Mesh) fine powder production.

We're here to help:

Easy ways to get the answers you need.

0086-21-58386189, 58386176

    Reinforced Ultrafine Mill Advantages

  • The production of low cost, high performance:

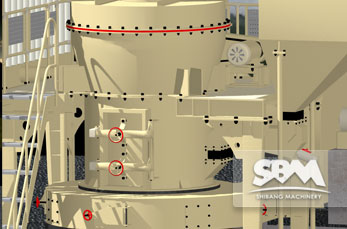

    The body and the base completely are soft connection, no rigid contact and avoid vibration grinding chamber body, pass to analysis machine, which improves the accuracy of analysis.

  • Good Stability, High Reliability:

    The base is made of high strength, anti-crack ductile iron -ductile iron has function of vibration reduction and good impact resistance.

  • Fine product size:

    Using German Flender gear boxes make full use of professional reducer technology advantage to improve machine stability. Reducer and motor V-belt transmission power is conducive to the overload protection.

    The host, the reducer with pin coupling with elastic sleeve, which avoids the nylon pin breakage phenomenon, improves the reliability of equipment.

  • Analysis machine adopts the high density of leaf:

    Analysis of machine adopts the high density blade, which can improve the powder fineness and yield. Practice shows that, at a constant engine speed, improving leaf density can improve product fineness. In other words, in the same fineness condition, lower speed of high density impeller can reduce the flow resistance and increase the yield. The impeller wheel adopts new structure to avoid the "coarse powder" phenomenon.

  • Analysis of machine adopts frequency control:

    Analysis of machine adopts frequency control, than with energy-saving electromagnetic speed, speed control and accurate process control, good flexibility, high degree of automation.

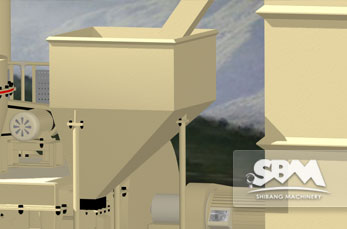

  • The bypass powder collector:

    The bypass powder collector, with dust isolation room, can make the gas with high dust content through the bypass flow into the cyclone is to reduce dust from air outlet escape opportunities.

  • Equipment layout scheme with resistance:

    Using the same drag layout can avoid two powder collector output and improve the efficiency of collecting powder, reducing the circulation and improving the mill output.

    The powder collector two outlets and precipitator outlet port three on the same line

    The powder collector, collector to collect the material mouth out with a linear arrangement for the materials, reducing the amount of labor, convenient package.

  • Set up repair platform:

    Setting up repair platform makes the mill maintenance more convenient, safer.

Name & Model T130X
Ring roll number (pcs) 4
Major diameter of roller (mm) Φ410×210
Inner diameter of roller (mm) Φ1300×210
Revolving Speed (rmin) 103
Max feed size (mm) <30
Final size (mm) 0.074-0.038
Output (T) 1.8-6.5
Complete physical size (mm) 7390×9960×8245
Main motor Model Y280S-4
Power (KW) 75
Rotate speed (rmin) 1480
Induced draft fan motor Model Y280M-4
Power (KW) 90
Rotate speed (rmin) 1480
Classifier speed regulating motor Model Y160L-4
Power (KW) 15
Rotate speed (rmin) 1460 (Frequency converter speed control)
Elevator model TH210
Model Y100L2-4
Power (KW) 3
Rotate speed (rmin) 1430
Jaw Crusher Jaw Crusher model PE 250×400
Model Y180L-6
Power (KW) 15
Rotate speed (rmin) 970
Magnetic vibrating feeder Model GZ3F
Power (KW) 0.2

Feedstock Size:30mm


Fields Of Application:It is mainly applied to the metallurgical, building materials, chemical materials, mining and other industries Grinding process.

Suitable Materials:It is suitable for feldspars, calcite, talc, barite, rare earth, marble, ceramic, alumina, slag, slag, activated carbon, dolomite, fly ash, clay, bentonite, gypsum, graphite, which humidity is below 6% of non-flammable and non-explosive materials.

Reinforced Ultrafine Mill Working Principle

The work, by the motor through the belt, a big belt wheel, transmission shaft, bevel gear, bevel gear drives the eccentric sleeve to rotate, crushing cone axis on the eccentric sleeve forced under the rotating swing, the broken wall surface and surface near and sometimes from rolling mortar wall, from the ring to the material composition in fixed cone and cone crushing cavity repeatedly subjected to impact, extrusion and bending and crushing. After repeated extrusion, impact and bending, crushing to the required size, the lower discharge.
