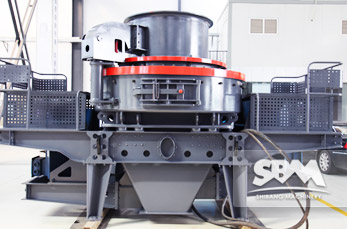

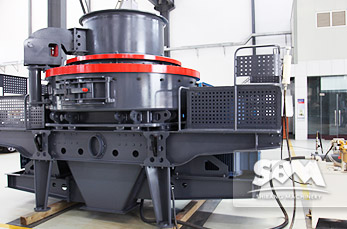

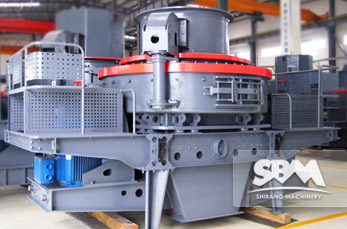

VSI5X Series Crusher

VSI5X series of new sand making machine is a new generation in the development of VSI series sand making machine with the introduction of German Technology Company, which has a number of independent patent property rights based on the VSI series sand making machine and set three broken mode in one. It has become the core equipment of sand industry mechanism.

We're here to help:

Easy ways to get the answers you need.

    Sand Making Machine Advantages:

  • Reduce cost and design optimization:

    Head design combined polishing, only need to replace worn expected to throw the first part, the use cost can be reduced by more than 30%; week shield local wear can use the up and down a U-turn, improve material utilization rate of more than 48%; the diamond impact block, avoid material impact wear damage made board.

  • The greater yield greater rate:

    By the deep cavity type rotor is optimized, so that the material is increased about 30% by weight; curved design of emission opening and optimal smoother, reduce the flow resistance of materials, greatly improve the material through capacity, increase the machine capacity.

  • Convenient and safe operation:

    Two purpose powder tray, simple operation, to achieve the two feeding mode - the center feeding and feeding with annular waterfalls falls fast conversion of the feed -; product selection of class F insulation, high protection grade motor protection class IP54/55 high efficiency, low noise.

  • Special seal repair convenience:

    The lower end of the main shaft sealing structure is special, to ensure that no oil is not leaked, to reduce fuel consumption; hydraulic Japan imported accessories cover opening device, mobile convenient cover, so that the replacement and repair of the internal parts of saving time and labor.

Model Feed at center&sides Feed at center Soft Material Hard Material REV (r/min) Power (kw) Motor Model Machine Size (mm)
Capacity (t/h) Max.Feeding (mm)
VSI5X7615DR 150-280 70-140 35 30 1700-1900 4-75×2 Y280S-4/75 4100×2330×2300
VSI5X8522DR 240-380 120-190 40 35 1500-1700 4-110×2 Y315S-4/110 4140×2500×2700
VSI5X9532DR 350-540 180-280 45 40 1300-1510 4-160×2 Y315L1-4/160 4560×2600×2900
VSI5X1145DR 500-640 250-360 50 45 1100-1310 4-220×2 Y355M1-4/220 5000×2790×3320

Feedstock Size: 30-50mm

Throughout:70-640T/h

Fields Of Application:It is applied for sand quarry, mixing station, dry mortar, quartz sand, construction waste crushing and other industries, for highway, high-speed railway, high-rise buildings, municipal, hydroelectric dam construction and concrete mixing station to provide quality sand aggregate etc.

Suitable Materials:It is suitable for cobble stone, quartz, limestone, coal gangue, basalt, granite, and diabase.

Sand Making Machine Working Principle

The center into hopper: material feeding into, the center feeding hole into the high-speed rotating rotor was sufficiently accelerated and the emission mouth out, first with rebound after free falling a portion of the material impact, and impact to the vortex shaped material around the vortex cavity lining (or counter block), first be bounced back to the top of the crushing chamber, after partial steering motion, forming a continuous material curtain and emitted from the impeller material impact, finally discharged.

Center feeding with annular waterfalls falls into hopper: material feeding into, again through the annular aperture falls, is the bulk material plate into two shares. A unit divided tray into the high-speed rotation of the impeller, another from the circumference of the lining plate down, into the impeller material, was rapidly accelerated in the impeller speed out, first with the bulk material another portion of the material around the free fall impact plate broken, and impact to the vortex shaped material around the vortex cavity the lining (or counter block), is first bounced back to the top of the crushing chamber, after partial steering motion, forming a continuous material curtain and emitted from the impeller material impact, the discharged.
