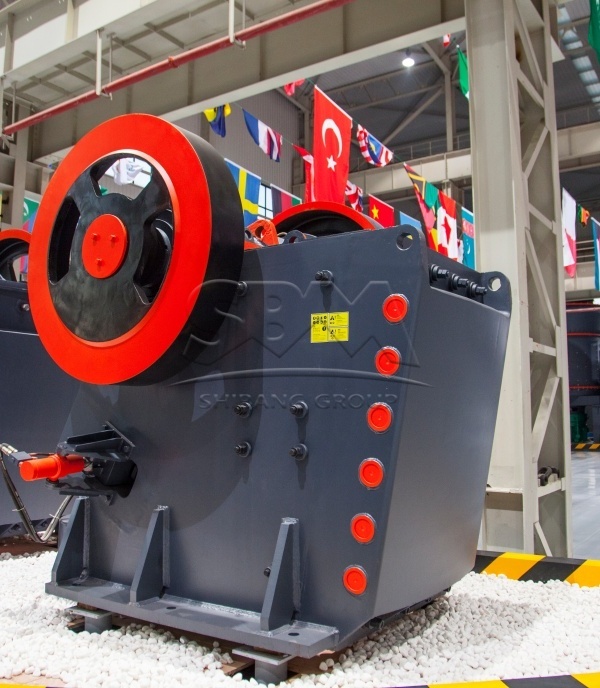

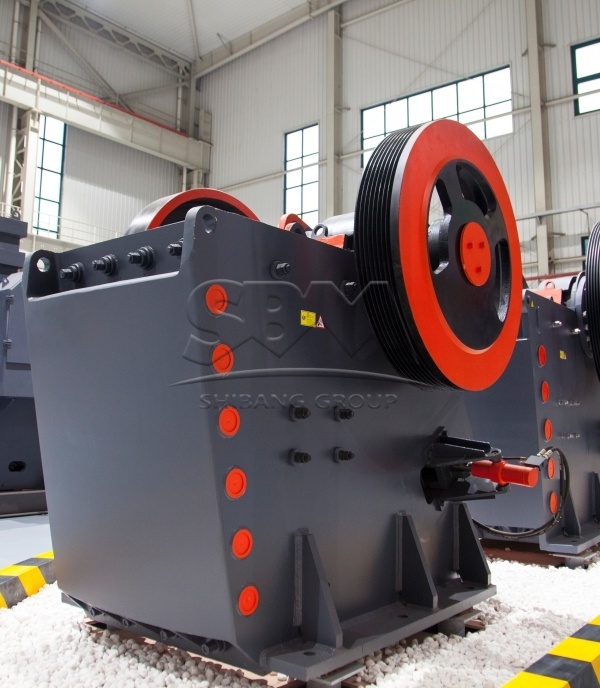

PEW Jaw Crusher

PEW jaw crusher is known as the European version jaw crusher, which is a new type of crusher of my company following traditional jaw crusher. The product is a perfect combination of modern technology and production practice, which is more in line with the majority of customers' requirements about automation production.

We're here to help:

Easy ways to get the answers you need.

  • Stable structure and reliable performance:

    The bearing seat adopts whole steel structure in order to avoid unnecessary burden that two type bearing chamber brings for body frame and enhance the stability of the whole structure. In addition, the heavy eccentric shaft forging processing makes PEW series jaw crusher has superior reliability.

  • V type structure and jugged plate:

    The design of "V" type of crushing chamber and the jugged plate is more reasonable. it can ensure that the actual feed size and the theoretical feed size consistency so that it can effectively increase the breaking area. the material in the crushing cavity won't be blocked up, which can make the broken rate and output maximum to improve the utilization rate of the jaw plate.

  • Hydraulic control system cavity cleaning conveniently:

    Equipped with hydraulic oil station, it can ensure the machine lubrication system supply for machine lubrication parts to provide protection for the safe operation of the machine. At the same time, if the crusher shut down under load, the hydraulic cavity cleaning system can quickly clean up the crushing cavity and greatly reducing the downtime.

  • Wedge device and quick adjustment:

    The wedge block the discharge control system is that even in idling conditions the machine also can adjust discharge port to a predetermined value in a few minutes. It realizes the automation under the hydraulic system coordination. It is simpler, safer, and faster than the old-fashioned gasket type outlet regulating system.

Model Feed Opening (mm) Max Feeding (mm) Discharge Opening (mm) Capacity (t/h) REV (r/min) Power (kw) Motor Model Machine Size (mm)
PEW250×1000 250×1000 220 20-40 15-50 330 6-37 Y250M-6/37 1400×1850×1310
PEW250×1200 250×1200 220 20-40 20-50 330 6-37 Y250M-6/37 1400×2050×1310
PEW400×600 400×600 350 35-85 15-70 250 6-37 Y250M-6/37 1920×1460×1840
PEW760 760×1100 620 75-200 150-350 270 6-110 Y315L1-6/110 2600×2500×2200
PEW860 860×1100 720 100-225 200-500 240 6-132 Y315L2-6/132 3300×2320×3120
PEW1100 1100×1200 930 150-275 300-650 210 8-185 Y355L1-8/185 4140×2660×3560

Feedstock Size:150-930mm

Throughput:12-650T/h

Fields Of Application:Ore crushing, construction aggregate production, construction waste crushing, water conservancy and Hydropower Engineering, highway, railway, road and bridge construction and other industries.

Suitable Material: Granite, marble, limestone, quartz stone, basalt, river pebbles, iron ore, copper ore etc.

Jaw Crusher Working Principle

Motor drives belt and pulley so that the eccentric shaft makes the movable jaw swing back and forth, up and down. when the movable jaw pushes the movable jaw plate to the fixed jaw plate movement, material is crushed. When the movable jaw and movable jaw plate back under the action of the eccentric shaft and the spring, material that has previously been crushed is discharged from the lower discharge gate. With the continuous rotation of the motor and the crusher jaw periodically crush and discharge material, it realizes batch production.
