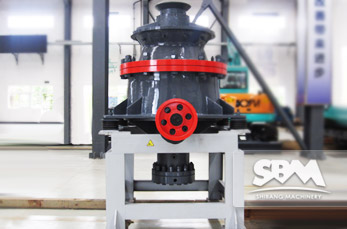

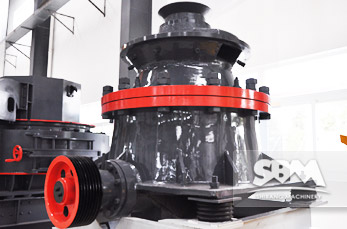

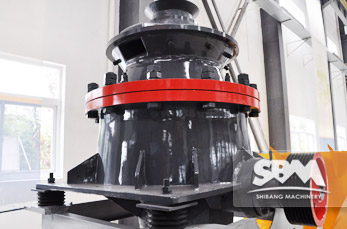

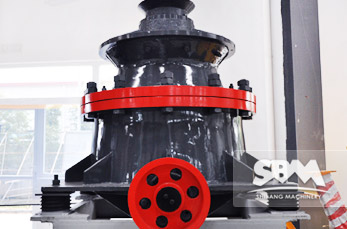

HCS Cone Crusher

HCS series single cylinder hydraulic cone crusher is a kind of high efficiency crusher machine, which is based on high technology that we introduce from Sweden, combined with China's metal material performance. Compared with similar products, our machine has great utility.

We're here to help:

Easy ways to get the answers you need.

    Cone Crusher Advantages

  • High yield capacity and stability:

    In the moving cone, top cone angle is small; the material that depends on its own weight to fall has fast speed, which can effectively improve the output of crusher. Constant cavity system ensures the lining board remains the same cavity type under different wear conditions, so that the feedstock and production capacity can keep the same all the time.

  • With simple structure and reliable performance:

    Numerous facts have proved that the more simple mechanical system structure is, the lower failure rate is, higher reliability and running more stable. In order to ensure the comprehensive performance, the structure of the machine is optimization, higher smooth transmission and more reliable performance.

  • Clear cavity fast and repair convenience:

    This machine integrates hydraulic adjustment and hydraulic protection set into one and convenient cleaning cavity; all repair work can be completed out on a rack. Liner replacement time is short and saving downtime.

  • Widely applicable product grain type:

    The series has a variety of cavity and multi style swing frequency. Stroke changes easily. It can be suitable for various size materials; multiple ore discharge port adjustment system makes discharge port adjusting convenient. The machine adopts the laminating crushing principle so that the product particle type is ideal.

Model Movable Cone Diameter(mm) Chamber Style Max Feeding (mm) Discharge Opening (mm) Capacity (t/h) Power (kw) Machine Size (mm)
HCS100 790 EC 135 10-32 46-128 90 1550×1575×1965
C 90 10-25 43-118
M 65 8-16 36-76
MF 50 6-13 29-68
F 35 4-10 27-57
EF 28 6 30-40
HCS160 956 EC 180 13-38 69-215 160 1875×1920×2400
C 145 13-32 65-197
MC 115 10-25 60-180
M 90 10-22 60-160
MF 75 8-19 61-125
F 50 6-19 45-105
EF 35 6 70-90
HCS250 1150 EC 215 16-44 110-380 250 2100×2320×2780
C 175 13-38 100-385
MC 140 13-32 95-325
M 110 13-25 115-335
MF 85 10-22 90-280
F 70 8-19 90-235
EF 38 8 100-125
HCS315 1408 EC 275 16-44 177-660 315 2380×2735×3265
CX 245 16-38 170-650
C 215 16-38 170-640
MC 175 16-32 160-552
M 135 16-32 195-500
MF 115 13-32 190-450
F 85 13-25 195-400
EF 65 13-22 210-300

Feedstock Size:76-320mm

Throughout: 55-700t/h

Fields Of Application:This machine is widely used in mine ore crushing, metallurgical industry, chemical industry, building industry, recycling of construction waste, cement and sand industry etc.

Suitable Materials:High hardness of rock crushing, such as granite, diabase, shale, basalt, quartz stone, gravel, limestone, iron ore, coal, nonferrous metal ore, stone etc.

Cone Crusher Working Principle

When HCS hydraulic cone crusher machine is at work, the motor through the belt, transmission shaft, bevel gear pair drives the eccentric sleeve to rotate and the moving cone does the rotating swing motion under the action of the eccentric sleeve to make moving cone and fixed cone sometimes be closer or deviation. The materials are being squeezed, impact, crushing in the crushing cavity and finally are discharged from the lower.

Services

Supply the most current design and technical expertise;Supply parts sales and training service far beyond the initial sale;Your profits with quality parts and expert service.
